FCYJ-0.75D Underground Diesel LHD

Jinan Fucheng Hydraulic Equipment Co., Ltd
Contact Now

FCYJ-0.75D Underground Diesel LHD

Place of Origin : china

Brand Name : fucheng

Model Number : FCYJ-0.75D

Certification : ISO9001

Price : 40000-50000SET\USD

Packaging Details : the export standard package

Delivery Time : 15 days

Payment Terms : FOB

Supply Ability : 30 sets\month

MOQ : 1 set

Contact Now

Main Technical Parameters

Motor: DEUTZ F4L912W(Germany)

Heaped Bucket Capacity:0.75 m3

Payload Capacity:1500kg

Max. Traction:41 KN

Max. Shovel Force :39KN

Running Speed:0-8km/h

Max. Climbing Ability :16°

Max .Discharge Height :850mm

Min. Turning Radius :2350mm

Max. Rotation Angle :±36°

Min. Ground Clearance :195mm

Rated Power :43kw

Max. Bucket Height:3600mm

Weight(include hydraulic oil):6.5T

Dimensions :5800*1250*1900

Features:

1.FCYJ-0.75D Underground Diesel LHD adopts German original DEUTZ F4L912W engine with low emissions, low pollution. Original imported main pump and motor guarantee the quality of the Hydraulic system.

3.The scooptram adopts the advanced way of three-point suspension articulated, which changes the old models’ layout form of oscillating axle.

4.It has overcome the defects of oscillating axle’s high failure rate, maintenance troubles, hidden dangers, greatly reduced the investment of manpower and material resources

5.Suitable for mining and roadway drivage slag, the construction of the road and work place, material transportation and so on.


Product Tags:

Underground Diesel scooptram made in china



Underground Diesel scooptram



Underground Diesel LODER


Buy cheap FCYJ-0.75D Underground Diesel LHD product

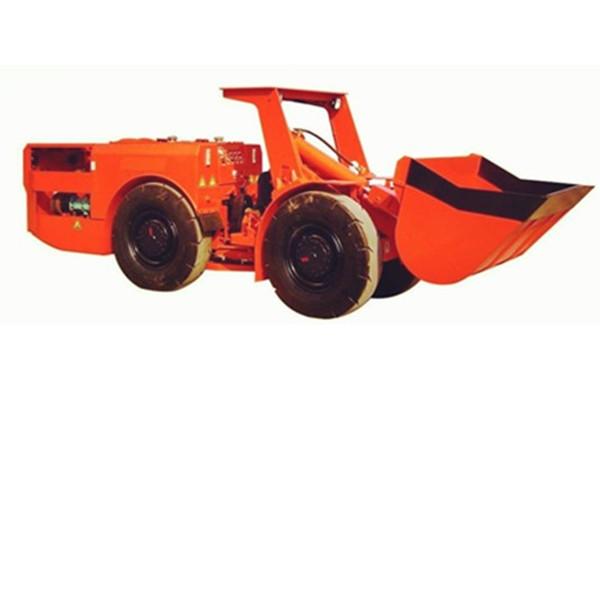

FCYJ-0.75D Underground Diesel LHD Images
